Tenders Description & Specification for Semi Automatic Digital Compression Testing Machine

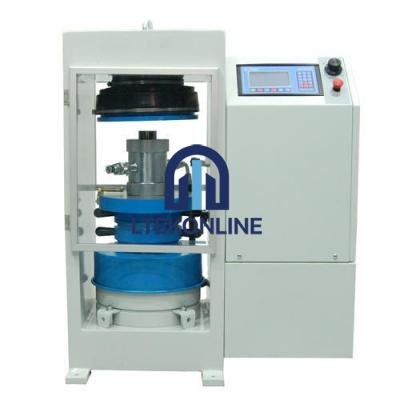

Semi Automatic Digital Compression Testing Machine
Semi Automatic Digital Compression Testing Machine - Semi-Automatic (Motorized) range of 2000 kN and 3000 kN capacity compression testing machines have been designed for reliable and consistent testing of a wide range of specimens. These compression testers are manufactured as a result of continuous research studies to upgrade the machines with the latest technologies to conform with the latest standards EN 12390-3, 12390-4, BS 1881 in terms of its technical properties taking into account the client requirements. These machines also meet the requirements of CE norms with respect to the health and safety of the operator. And their user-friendly design enable an inexperienced operator to perform the test.
米aximum horizontal clearance for placing sample is limited with the border of the platens. Sample must be placed such that its ends will not overflow from the ends of platens and it must be centered perfectly. The suitable vertical clearance for specimen can be adjusted with distance pieces. Operated on 220 V, 50 Hz, Single Phase.
| Capacity | 2000kN | 3000 kN |
| Standard | EN | EN |
| The roughness value for texture 的加载和辅助压板 |
≤ 3.2 µm | ≤ 3.2 µm |
| Lower platens dimensions (dia.) | 300 mm | 300 mm |
| Upper platens dimensions (dia.) | 300 mm | 300 mm |
| 米aximum vertical clearance between platens | 340 mm | 340 mm |
| Piston diameter | 250毫米 | 300 mm |
| 米aximum piston movement | 50 mm | 50 mm |
| Horizontal clearance | 360 mm | 425 mm |
| Power | 550 W | 550 W |
| Oil capacity | 20 L | 20 L |
| 米aximum working pressure | 410 Bar | 410 Bar |
| Dimensions (W x L x H) (mm) | 740x 500x 970 |
805x 540 x 1050 |
| Weight | 780 kg | 1080 kg |
Ltekonline are the manufacturers of Semi Automatic Digital Compression Testing Machine used to demonstrate engineering principles in Engineering Colleges, Engineering Schools andConcrete Testing Lab Equipmentfor Engineering Teaching Lab in Universities
