Tenders Description & Specification for Safety Shoes Drop Impact Testing Machine

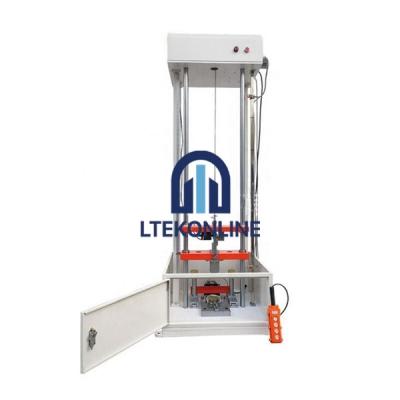

Safety Shoes Drop Impact Testing Machine
The machine is mainly used to conduct impact test on steel head of safety shoes, and then inspect its subsidence degree to understand the safety quality of safety shoes.
This Safety Shoes Footwear Impact Resistance Tester is installed a steel striker adapted to fall freely on vertical guides from a predetermined height to give the required impact energy to the toe of safety footwear for measuring the degree of the dent. In addition, the toecap should not develop any cracks on the test axis with go through the material.
Specifications:
Drop Height: 0~1100mm auto adjustable
Impact Energy: (EN)200J, (BS, ANSI)100J
影响重量:20±0.2 (EN)kg, (BS, ANSI) 22.7KG
Striker: (EN)3±0.1mm, (ANSI) ø25.4
Power: AC220V/50Hz
Dimension: 70×70×180cm
体重:185公斤。
Ltekonline are the manufacturers of Safety Shoes Drop Impact Testing Machine used to demonstrate engineering principles in Engineering Colleges, Engineering Schools andAbrasion Test Machinefor Engineering Teaching Lab in Universities
